サーバの監視用にxymonを試してみる。

みなさん、こんにちは。
@tana_ra です。

この前VoyageGroupのSunriseというインターンに中の人として参加しました。
2年前参加した時、ゴミ未満でしたが、ある程度知識がついていてよかったです。
ただ、ある程度はわかってきたとはいえ、インフラ力が明らかに足りないので、
もっと勉強しようと思いました。

※ Sunrise

ところで、今仕事とは関係なく manavee 関連のサービスをたてようとしてるんですが、そこで何かが起きた時のために、とりあえず、サーバ監視方法を知ろうと思いました。
ということで、今回はxymonによるサーバ監視を試してみようと思います。
試してみようと思ったけど、まだサービスのサーバもできてないので、今回はインストールのみですw

※ manavee

Install

以下の内容を、install.shとして実行すればインストールされます

Vagrantで作ったVMのboxは tarata/xymon-getting-started · GitHub です。

Install Script

xymon_version='4.3.17'

# 必要なパッケージインストール
yum install -y make vim gcc pcre-devel rrdtool-devel libpng-devel openssl-devel openldap-devel wget fping httpd
if [ -f /usr/bin/fping ];then
    ln -s /usr/sbin/fping /usr/bin/fping
fi

# 監視対象のhttpd起動
chkconfig httpd on
service httpd start

# xymonユーザ作成
grep '^xymon:' /etc/passwd
if [ $? -ne 0 ]; then
    useradd xymon
fi

# xymonインストール
cd /tmp
if [ ! -f /tmp/xymon-${xymon_version}.tar.gz ];then
    wget http://sourceforge.net/projects/xymon/files/Xymon/${xymon_version}/xymon-${xymon_version}.tar.gz
    tar zxvf xymon-${xymon_version}.tar.gz
    cd xymon-${xymon_version}
    ./configure
    make
    make install
fi


# httpd用xymon設定ファイルコピー
if [ ! -f /etc/httpd/conf.d/xymon.conf ];then
    cp /home/xymon/server/etc/xymon-apache.conf /etc/httpd/conf.d/xymon.conf
    service httpd reload
fi

# xymon Service起動スクリプトの作成(sedコマンドによりPATHを変更)
sed -e "s/DAEMON=\/usr\/lib\/xymon\/server\/bin\/xymon.sh/DAEMON=\/home\/xymon\/server\/bin\/xymon.sh/g" /tmp/xymon-${xymon_version}/rpm/xymon-init.d > /etc/init.d/xymon
chmod +x /etc/init.d/xymon

if [ ! -f /etc/logrotate.d/xymon ];then
    cp /tmp/xymon-${xymon_version}/rpm/xymon.logrotate /etc/logrotate.d/xymon
fi

# xymon Service起動
chmod 701 /home/xymon
chkconfig xymon on
service xymon restart

これでインストールが完了します。

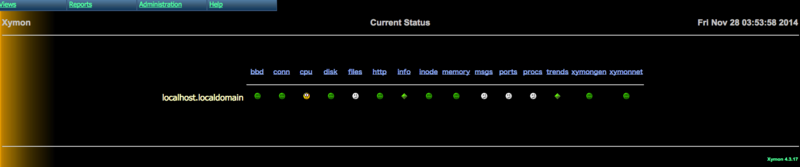

この後、 http://{serverのip address}/xymon/xymon.html にアクセスすれば以下の様な画面が見れます。

f:id:arata3da4:20141128125616p:plain

き・・・きいろい・・・けど気にしません。

ほとんどXymonインストールに書いてあったことをまんまやっただけですw

対応はこんな感じです。

必要なパッケージの導入

# 必要なパッケージインストール
yum install -y make vim gcc pcre-devel rrdtool-devel libpng-devel openssl-devel openldap-devel wget fping httpd
if [ -f /usr/bin/fping ];then
    ln -s /usr/sbin/fping /usr/bin/fping
fi

Xymon本体のインストール

# xymonユーザ作成
grep '^xymon:' /etc/passwd
if [ $? -ne 0 ]; then
    useradd xymon
fi

# xymonインストール
cd /tmp
if [ ! -f /tmp/xymon-${xymon_version}.tar.gz ];then
    wget http://sourceforge.net/projects/xymon/files/Xymon/${xymon_version}/xymon-${xymon_version}.tar.gz
    tar zxvf xymon-${xymon_version}.tar.gz
    cd xymon-${xymon_version}
    ./configure
    make
    make install
fi

サービス起動前の下準備

# httpd用xymon設定ファイルコピー
if [ ! -f /etc/httpd/conf.d/xymon.conf ];then
    cp /home/xymon/server/etc/xymon-apache.conf /etc/httpd/conf.d/xymon.conf
    service httpd reload
fi

# xymon Service起動スクリプトの作成(sedコマンドによりPATHを変更)
sed -e "s/DAEMON=\/usr\/lib\/xymon\/server\/bin\/xymon.sh/DAEMON=\/home\/xymon\/server\/bin\/xymon.sh/g" /tmp/xymon-${xymon_version}/rpm/xymon-init.d > /etc/init.d/xymon
chmod +x /etc/init.d/xymon

if [ ! -f /etc/logrotate.d/xymon ];then
    cp /tmp/xymon-${xymon_version}/rpm/xymon.logrotate /etc/logrotate.d/xymon
fi

# xymon Service起動
chmod 701 /home/xymon
chkconfig xymon on
service xymon restart

サービスの方が進んできたら コンフィグファイルについて の方もやってみようかなと思います。
